New Product Announcements



Date: June 16, 2008

Murata Power Solutions expands its range of high efficiency DC/DC Converters with introduction of 2W single output NMG series

Murata Power Solutions expands its range of high efficiency DC/DC Converters with introduction of 2W single output NMG series
    NMG Series
  1. Industry-standard pinout, isolated 2W single output DC/DC Converters
  2. Typical efficiency up to 88%, 1kVDC isolation
  3. Wide choice of input and output voltages
  4. Full 2W performance across industrial temperature range
NMG Series
dc/dc converters
View high-resolution image

View Press Release
Data Sheets



Date: April 16, 2008
Self-Contained true-RMS Ammeters provide compact and easy-to-use solution for measurement of non-sinusoidal AC currents
World's first true-RMS responding AC Ammeters with built-in current transformers (CTs)
World's first true-RMS responding AC Ammeters with built-in current transformers (CTs)
    ACA-20RM Series digital AC ammeters
  1. Five models provide current measurement from 0 to 50A
  2. Large easy-to-read red LED display
  3. Choice of either 120V or 220V (nominal) operation
ACA-20RM Series
digital AC ammeters
View high-resolution image

View Press Release
Data Sheets



Date: March 27, 2008
Ten new series of inductive components enhance industry-leading magnetic product range
The RoHS compliant 2800, 3200, 3300, 3400, 3400L, 3500, 3600, 5100, 5200, & 8400 Series.
2800, 3200, 3300, 3400, 3400L, 3500, 3600, 5100, 5200, & 8400 Series
  1. Over 100 new parts introduced
  2. Shielded, unshielded, leaded, surface mount and low-profile parts added
  3. Custom designs available
2800, 3200, 3300, 3400, 3400L, 3500, 3600, 5100, 5200, & 8400 Series
View high-resolution image

View Press Release
2800
 3200
 3300
 3400
 3400L
3500
 3600
 5100
 5200
 8400



Date: February 25, 2008
Isolated 2W single output DC/DC Converter sets new standards in efficiency and load regulation
The RoHS compliant NMK series offers 3kVDC isolation (for 1 minute) and power density of up to 1.33W/cm3.
NMK Series single output DC/DC converters
    NMK Series single output DC/DC converters
  1. 89% typical efficiency (15V output), 7% output voltage set point accuracy
  2. Maximum load regulation 2.5% (15V output)
  3. Wide choice of input and output voltages
  4. 3kVDC isolation and power density to 1.33W/cm3
  5. Full 2W load performance across industrial temperature range
NMK Series single
output DC/DC converters
View high-resolution image

View Press Release
Data Sheets



Date: February 6, 2008
Three new series of current sense transformers designed for latest applications in high frequency equipment
5300, 5400 & 5500 series are RoHS compliant, feature UL94 V-0 package materials, have a frequency range of 50kHz to 500kHz and comply with the J-STD-020C standard for reflow soldering.
5300/5400/5500 Series of current sense transformers
    5300/5400/5500 Series of current sense transformers
  1. 10A and 15A primary current ratings
  2. Compact designs using UL94 V-0 package materials
  3. 50kHz to 500kHz operating frequency range
  4. Wide choice of devices to suit many applications
  5. Available with 50, 100 or 200 turns
  6. Primary to secondary isolation of 500Vrms - 1200Vrms
5300/5400/5500 Series of
current sense transformers
View high-resolution image

View Press Release
Data Sheets  5300
 5400
 5500



Date: January 22, 2008
DC/DC converters support DDR Memory applications
The 60A-rated VCN60BADJTU-1C and 70A-rated VCN70BADJTU-1C provide high efficiency, high bandwidth solutions for a wide range of applications such as computer equipment, telecommunications hardware, test equipment and industrial automation.
VCN60 and VCN70 Series DC/DC converters
    VCN60 and VCN70 Series DC/DC converters
  1. Small form factor with 1U height
  2. Programmable 0.6V to 3.5V output
  3. 50A/in3 current density
  4. 88% efficiency
  5. Soft Start Circuit
  6. Differential remote sense
  7. Power good signal
  8. Pre-Bias turn on
  9. Output enable
  10. Comprehensive safety
      over-voltage
      over-current
      over-temperature
  11. Powering DDR1, DDR2 and DDR3 memory
VCN60/70 Series
DC/DC converters
View high-resolution image

View Press Release
Data Sheets



Date: October 19, 2007

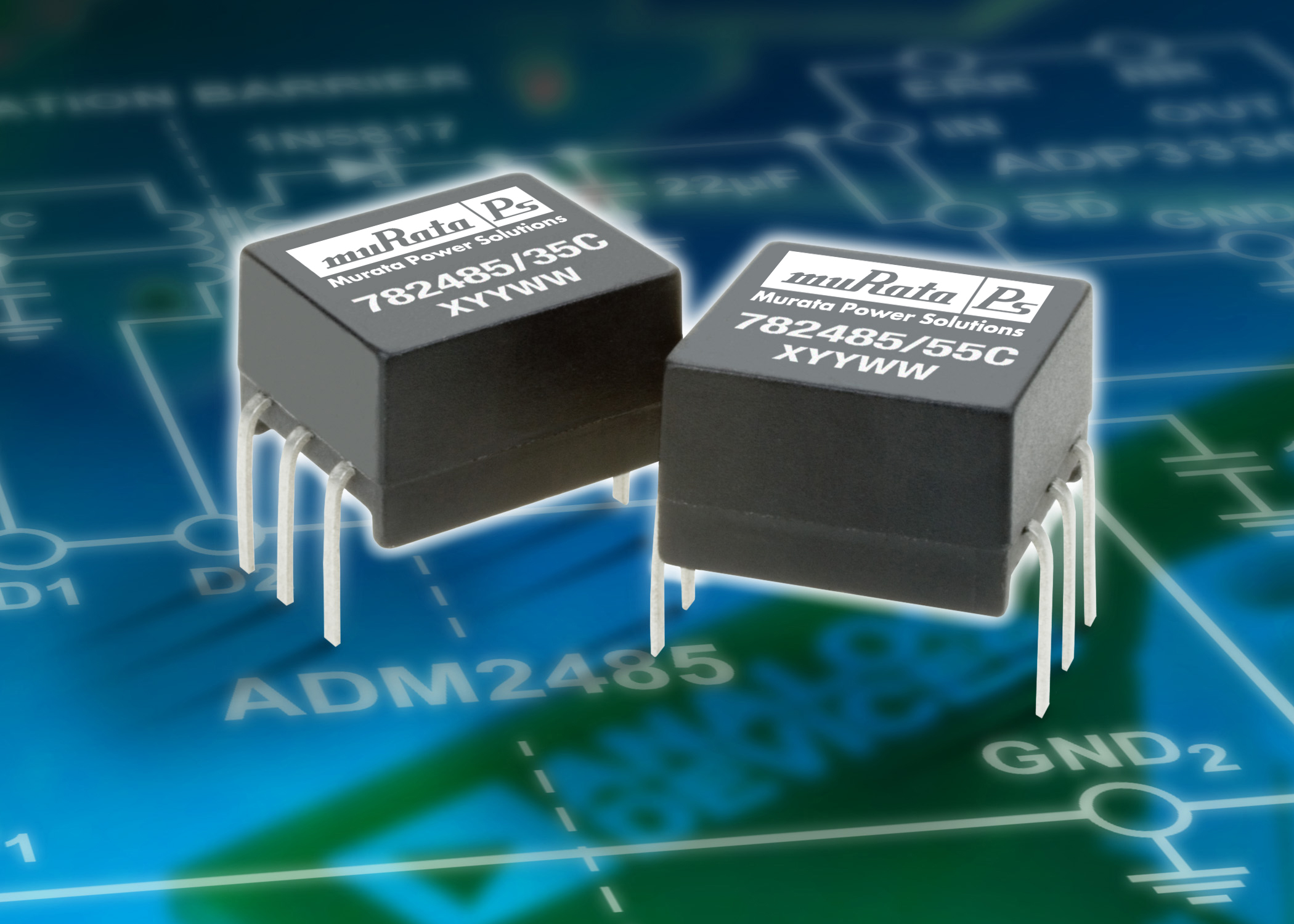

Converter Transformers Approved For Use With ANALOG DEVICES High-Speed Transceivers
Compatibility with ADM2485 speeds implementation of isolated RS-485 and RS-422 interfaces
782485 Transformer
    782485 Series Transformers
  1. RoHS compliant
  2. Analog Devices ADM2485 compatible
  3. 2.5kVrms isolation
  4. Industry-standard pinout
  5. UL 94 V-0 package materials
  6. Low profile
  7. Toroidal construction
  8. Fully encapsulated
  9. Industrial temperature range
  10. Surface mount versions available soon
  11. Recommended by Analog Devices, Inc.
782485 Series
ADM2485 Compatible Converter Transformers
View high-resolution image

View Press Release
Data Sheets



Date: October 16, 2007
RoHS Compliant 200W cPCI AC Power Supply Achieves New Levels of Compact Design
Support hot-swapping, is compliant with the PICMGT 2.11 R1.0 Power Interface Specification, as well as all the underlying CompactPCI standards.
cPCI200A-1 AC/DC Power Supply
    cPCI200A-1 AC/DC Power Supply
  1. RoHS Compliant
  2. 3Ux4HP package
  3. 200W power at 0-50ºC
  4. PICMG 2.11 Compliant
  5. Widerange 90-264VAC Input
  6. Active power factor correction to EN61000-3-2
  7. Class A conducted EMI performance
  8. 47-pin I/O Connector
  9. 80% efficiency
  10. Full power with just 250lfm airflow
  11. Hot-swap capable
cPCI200A-1
AC/DC Power Supply

View Press Release



Date: October 1, 2007
2 Amp, 3.3V & 5V Output, High Efficiency, Synchronous Switching Regulators
78SR Step-Down Switching Regulators Provide High-Efficiency Drop-In Replacement For LM7805 & LM7812 Applications
ADS-939 Sampling A/D Converter
    78SR, 2 Amp Step-Down Switching Regulators
  1. Up to 95% efficiency- no costly heat sinks or fans required
  2. Wide 8- 32Vdc input voltage range
  3. Two package options:
         3-pin vertical mount SIP
         Low profile, horizontal mount SIP
  4. No external Input/Output filter capacitors required
  5. -40 to +70°C full load operation at 24Vin with no derating
  6. Excellent load (±0.25%) and line (±0.35%) regulation
  7. Low-cost upgrade for 78HT2, 78SR1, 78ST1, and PT5100 switchers
  8. Open frame design minimizes self-heating & pc-board footprint
  9. Low noise output for powering sensitive instrumentation
2 Amp Step-Down Switching Regulators
View high-resolution image

View Press Release
Data Sheets



Date: August 20, 2007

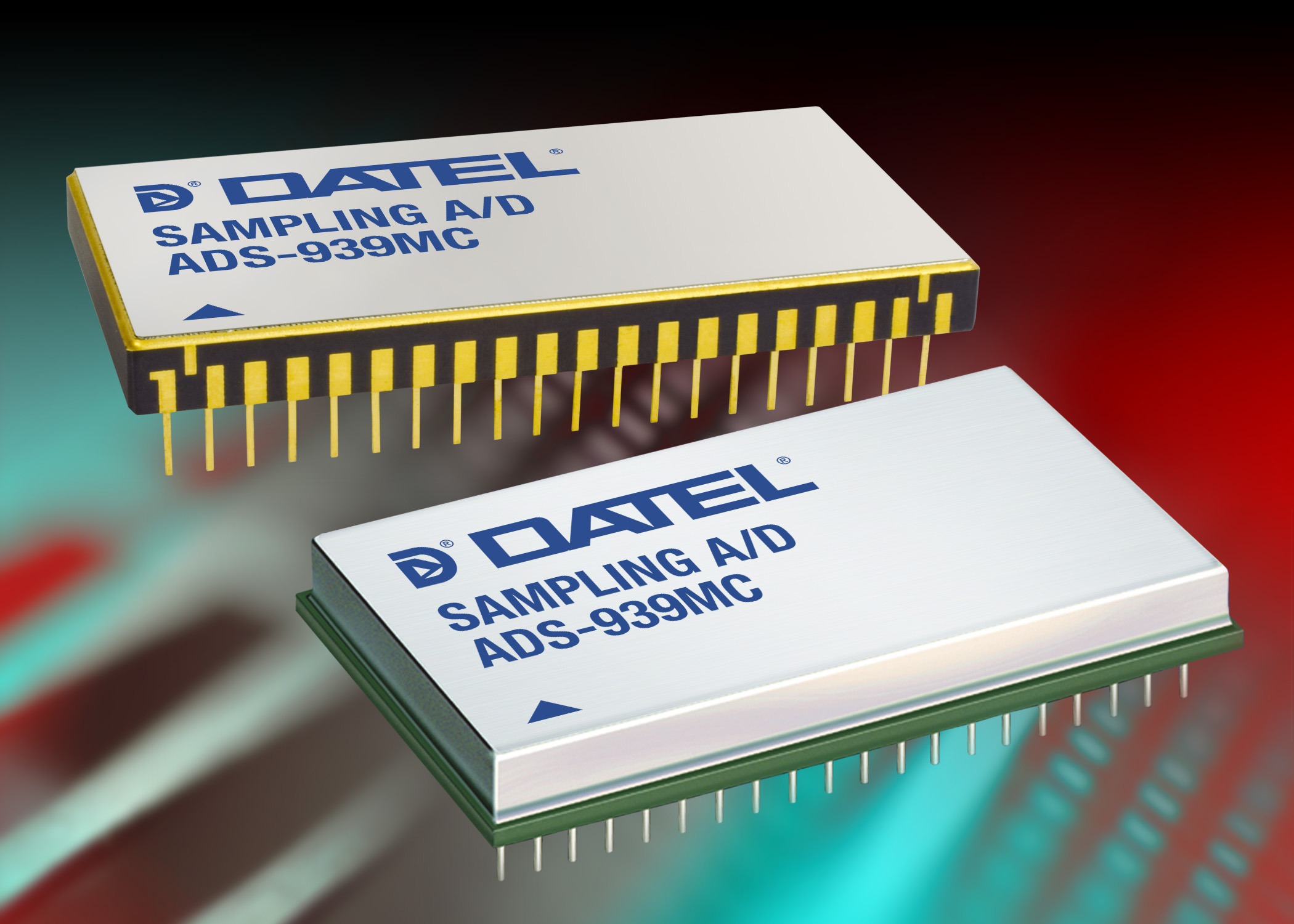

ADS-939 Sampling A/D Converter Delivers True 16-Bit Performance at 10MHz in a Fully Integrated Package
Small, functionally complete design requires no external components and promotes high reliability
4500, 4600,4700, 4800 and 4900 Surface-Mount Power Inductors
    Sampling A/D Converter
  1. 16-bit resolution
  2. 10MHz sampling rate
  3. Functionally complete
  4. No missing codes over full military temperature range
  5. Edge-triggered
  6. ±5V, ±12V or ±15V supplies, 3.0 Watts
  7. Small, 40-pin, ceramic TDIP
  8. 82dB SNR, -86dB THD
  9. Ideal for both time and frequency-domain applications
Sampling A/D Converters
ADS-939
View high-resolution image

View Press Release
Data Sheets



Date: July 3, 2007

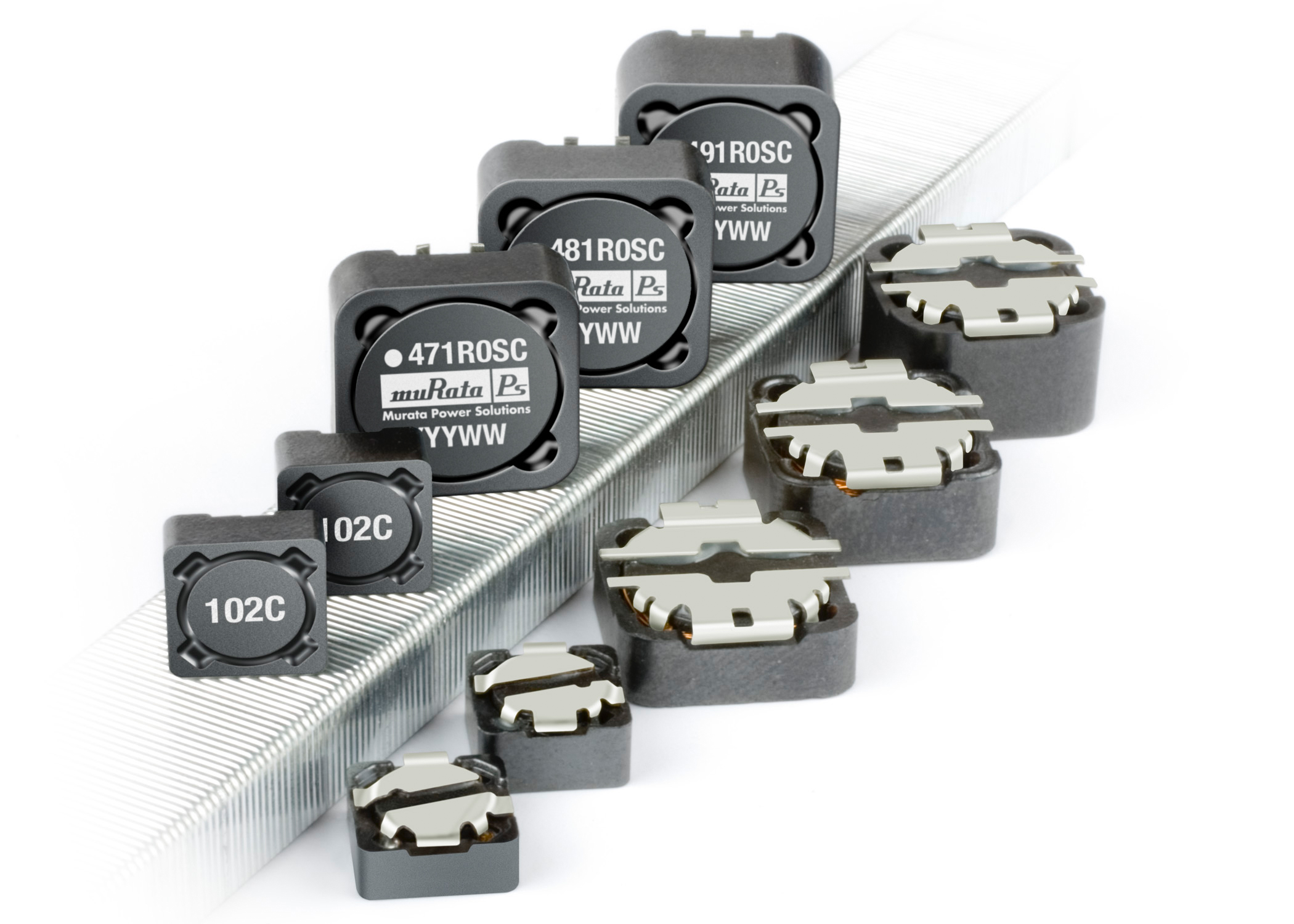

Five New Inductor Ranges to Give Design Engineers Greater Choice
The 4500, 4600, 4700S, 4800S and 4900S series offer a broad range of inductance values and current ratings to provides maximum amount of choice for power system applications.
4500, 4600,4700, 4800 and 4900 Surface-Mount Power Inductors
    Surface-Mount Power Inductors
  1. Five new series of shielded surface-mount inductors
  2. RoHS & China RoHS compliance, UL 94V-0 materials and J-STD-020-C reflow across the range
  3. Inductance values from 0.28µH to 1.0mH
  4. Top end current ratings from 8A to 11.8A
Surface-Mount Power Inductors
View high-resolution image

View Press Release
4500 4600 4700S 4800S 4900S



Date: June 15, 2007
4:1 Wide Input, Highly Efficient 100W Quarter-Brick DC/DC Converters
For applications requiring wide range input, improved electrical and thermal perfomance consider Murata Power Solutions new UQQ Series "Quarter-Brick" DC/DC Converters.
UQQ Series Wide Input Range Single Output DC/DC Converters
    UQQ Series DC/DC Converters
  1. Wide range 9-36 Volt (12/24Vin nom) or 18-75 Volt (24/48Vin nom) DC inputs
  2. Five fixed output ranges, 3.3V/25A to 24V/4A
  3. Standard quarter-brick package and pinout
  4. 2250V isolation with 0.43"package height
  5. Extensive control and protection features
  6. UL/EN/IEC safety approvals and certifications
  7. RoHS compliant
  8. Interleaved synchronous-rectifier topology
  9. Ultra high efficiency
UQQ Series
Quarter-Brick DC/DC Converters

View high-resolution image

View Press Release



Date: May 1, 2007
Miniature SIP Packaged Device is World's Smallest Safety Approved
1 Watt DC/DC Converter
The NMJ series is UL60950 recognized and suitable for applications where safety and miniaturization are of paramount importance.
NMJ Series 1W DC/DC Converters
    NMJ Series 1W DC/DC Converters
  1. RoHS compliant and UL60950 recognized
  2. Power density 0.42W/cm3
  3. Wide temperature performance at full 1 watt load, -40°C to 60°C
  4. Single and dual outputs
  5. UL 94V-0 package material
  6. Footprint 1.91cm2
  7. SIP package style; No heatsink required
  8. 5.2kVDC isolation
  9. 3V, 5V & 12V input
  10. 3V, 5V, 9V, 12V and 15V output
  11. Internal SMD construction
  12. Custom solutions available
NMJ Series
1W DC/DC Converters

View high-resolution image

View Press Release



Date: March 27, 2007

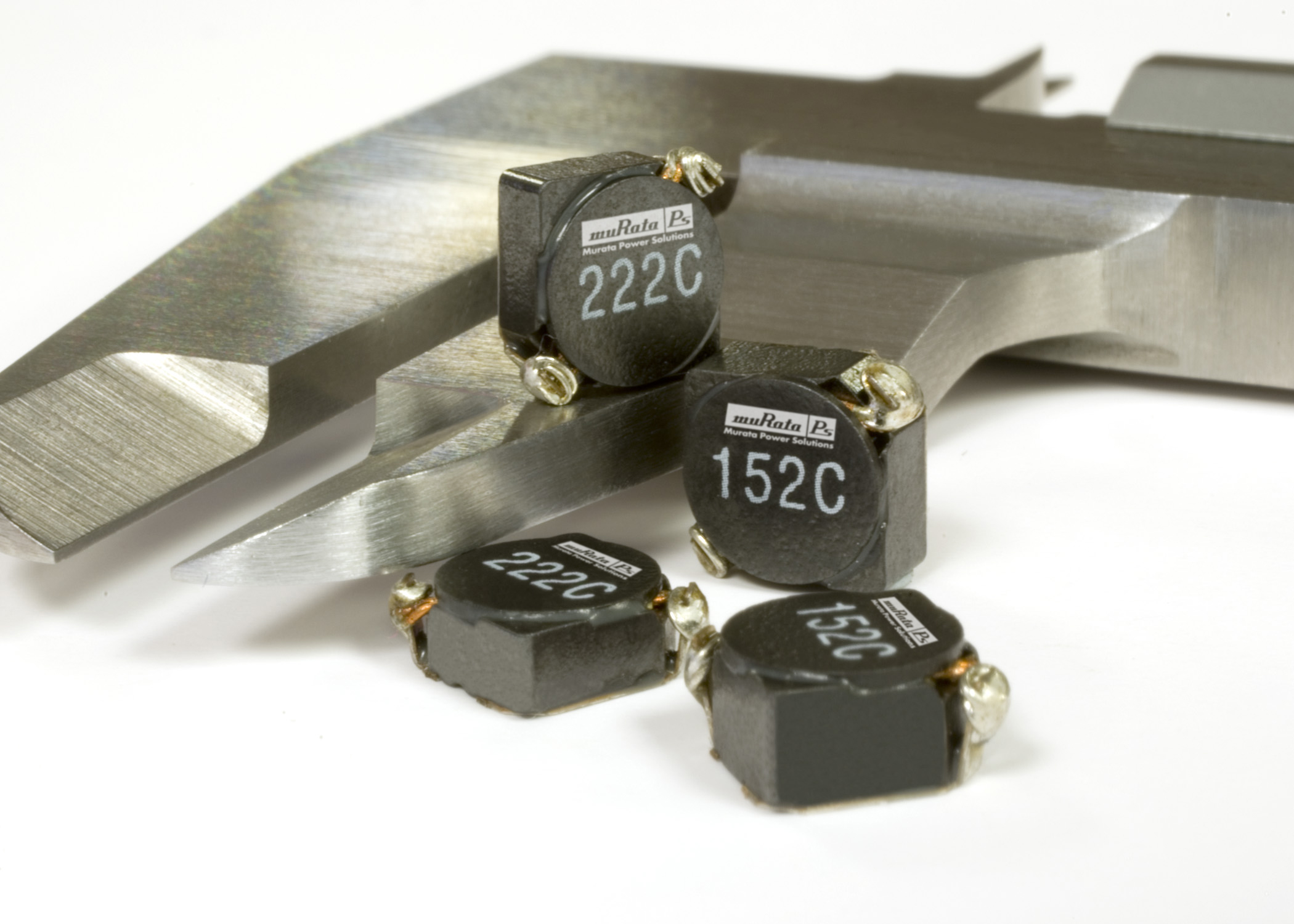

Low-Profile, Shielded Inductors Suit EMI Sensitive Applications With Limited Space
Suitable for power-line filtering found in consumer electronics, as well as in a vast range of industrial and telecom applications.
2900 Series Shielded Surface Mount Inductors
    2900 Series Shielded Surface Mount Inductors
  1. RoHS compliant
  2. Low profile
  3. Surface mount
  4. Inductance range from 1.0µH to 1.0mH
  5. Tape & reel
  6. UL 94V-0 materials
  7. J-STD-020-C reflow
2900 Series
Shielded Surface Mount Inductors

View high-resolution image

View Press Release  2900L
 2900



Date: March 6, 2007

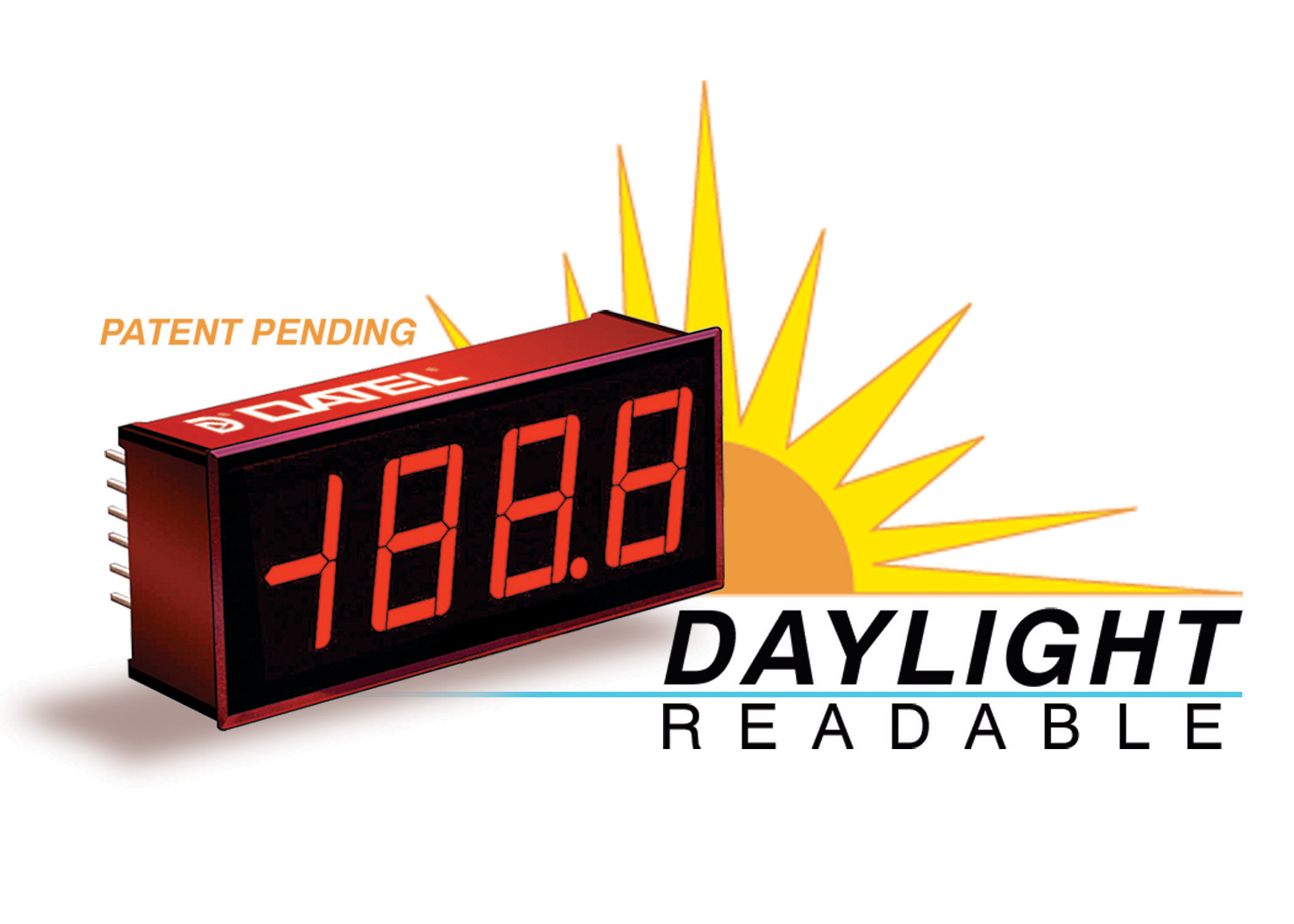

Murata Power Solutions Introduces Daylight-Readable LED-Display Digital Panel Meters With Auto-Dimming Function
DMS-30DR Series are the first digital panel meters to offer LED displays that are readable in direct sunlight, no special filters or shading devices are required.
DMS-30DR Daylight Readable Panel Meter
    DMS-30DR Daylight Readable Panel Meter
  1. Super-bright LED displays are readable in direct sunlight!
  2. Autodim circuitry automatically adjusts display brightness
  3. Includes external brightness adjustment
  4. Large (0.56"/14.2mm) easy-to-read red LED display
  5. High reliability alternative to LCD displays
  6. Ideal for automotive, industrial, and marine applications
  7. Encapsulated package mounts in panels or pc-boards
  8. Miniature housing: 2.17" x 0.92" x 0.56" (55mm x 23mm x 14mm)
  9. 4 differential input ranges provide ±1 count accuracy
  10. Single +5V supply; Less than 1-Watt power consumption
  11. 0 to +60°C operating temperature range
Daylight Readable
Digital Panel Meter

View high-resolution image

View Press Release



Date: February 26, 2007
Dual 14-Bit A/D Converters Provide 20MSPS Performance for Commercial, Industrial, and Military Applications
The ADSD-1420S is optimized for wideband frequency-domain applications and is fully FFT tested.
ADSD-1420S Sampling A/D Converter
    ADSD-1420 Sampling A/D Converter
  1. 14-bit resolution; 20MSPS sampling rate
  2. Functionally complete; ±2.5V input range
  3. No missing codes over full temperature range
  4. Edge-triggered
  5. ±5V supplies, 1.6 Watts
  6. 75dB SNR, -80dB THD
  7. Ideal for both time and frequency-domain applications
ADSD-1420
Sampling A/D Converter

View high-resolution image

View Press Release



Date: February 13, 2007

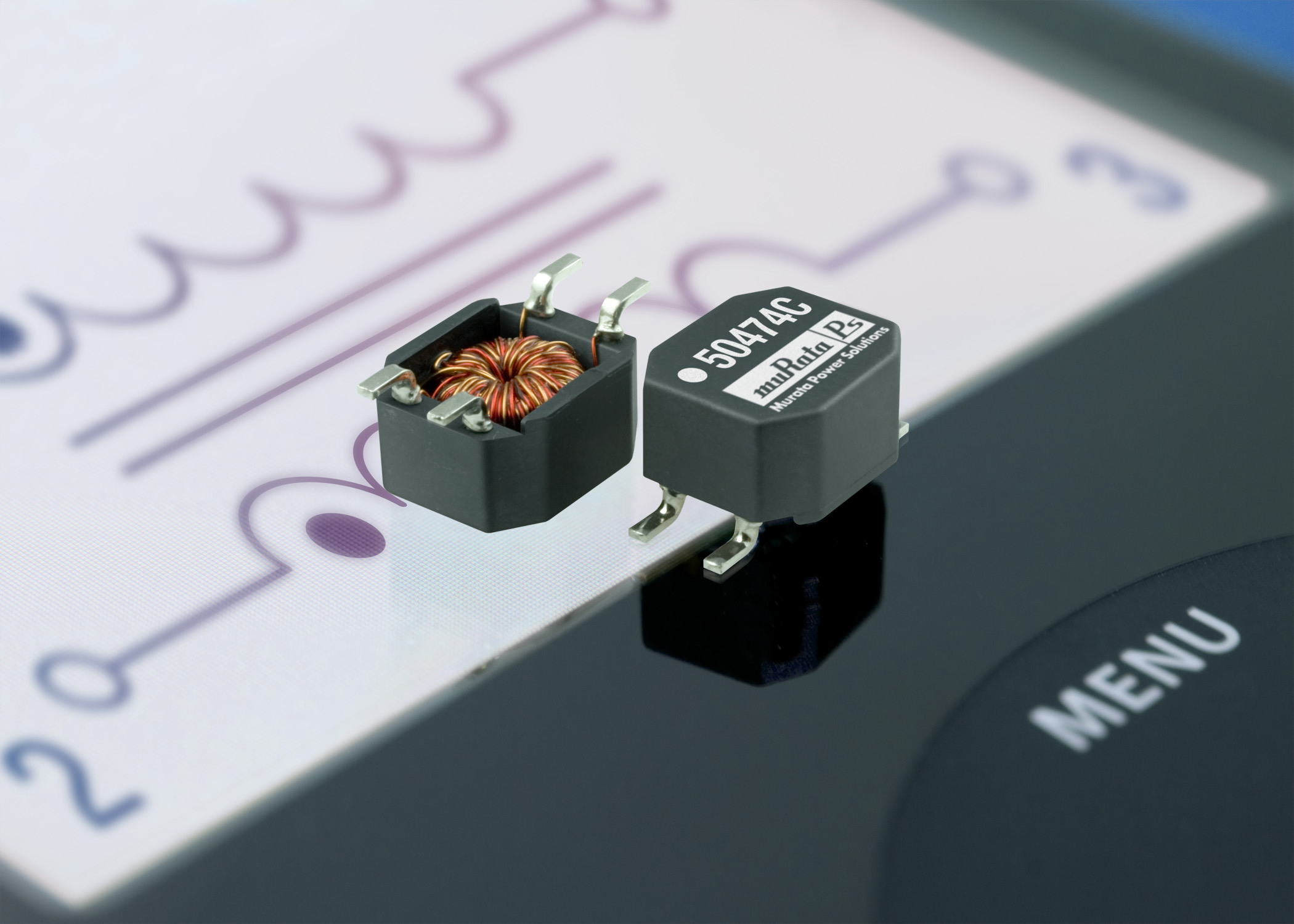

New Common Mode Chokes Reduce Noise in EMC Sensitive Applications
The 5000 series offers inductance values ranging from 0.47mH to 4.7mH and a DC current rating of up to 700mA
Surface Mount Common Mode Chokes
    5000 Series Common Mode CHokes
  1. RoHS compliant
  2. 0.47mH to 4.7mH
  3. Surface mount package
  4. Up to 0.7 A Idc
  5. UL94 V-0 package materials
  6. Compact size
  7. J-STD-020C reflow
5000 Series
Common Mode Chokes
View high-resolution image

View Press Release



Date: January 09, 2007

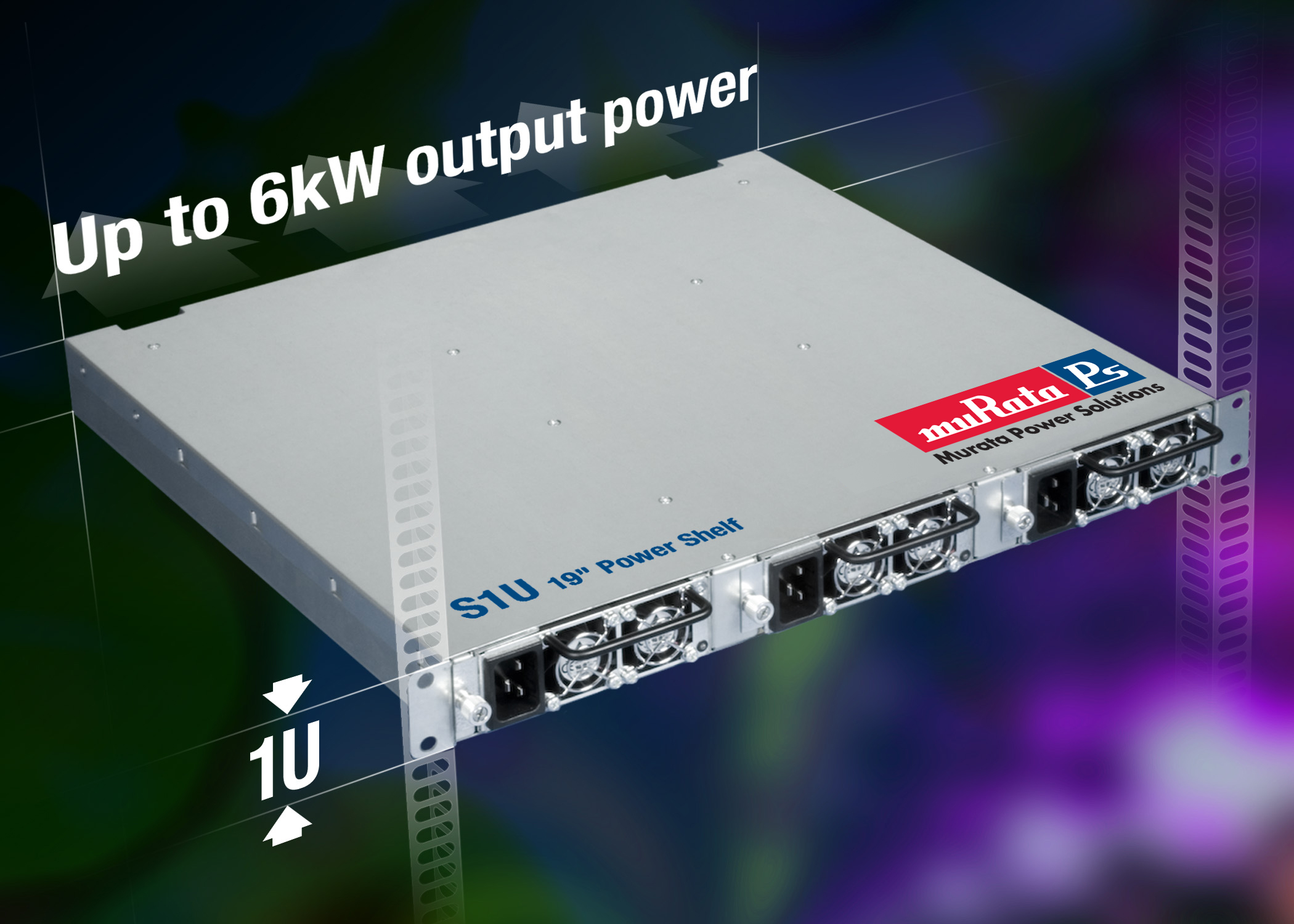

19-Inch Powershelf Simplifies Design and Helps Shorten Time-to-Market
For Distributed Power Architecture Applications in the Servers, Storage Networking and Data Communications Markets.
S1U-3X Power Shelf
    S1U-3X Power Shelf
  1. RoHS compliant
  2. 1U height, 18.3” width, 16” depth powershelf
  3. Holds 3 D1U series power supplies
  4. Hot insertion/removal
  5. Blind-docking connection
  6. Lug DC output connection for 2 AWG cables
  7. I2C interface
  8. Signal connector
  9. Optional shelf to shelf signal connector (up to 2 shelves in parallel)
S1U-3X
Power Shelf

View high-resolution image

View Press Release



Date: November 28, 2006
AC/DC Front-End Power Supplies Provide Improved Efficiency and Energy Cost Savings for Distributed Power Applications
Designed to deliver reliable bulk power to servers, workstations, storage systems or any 12V distributed power architecture systems requiring high power density.

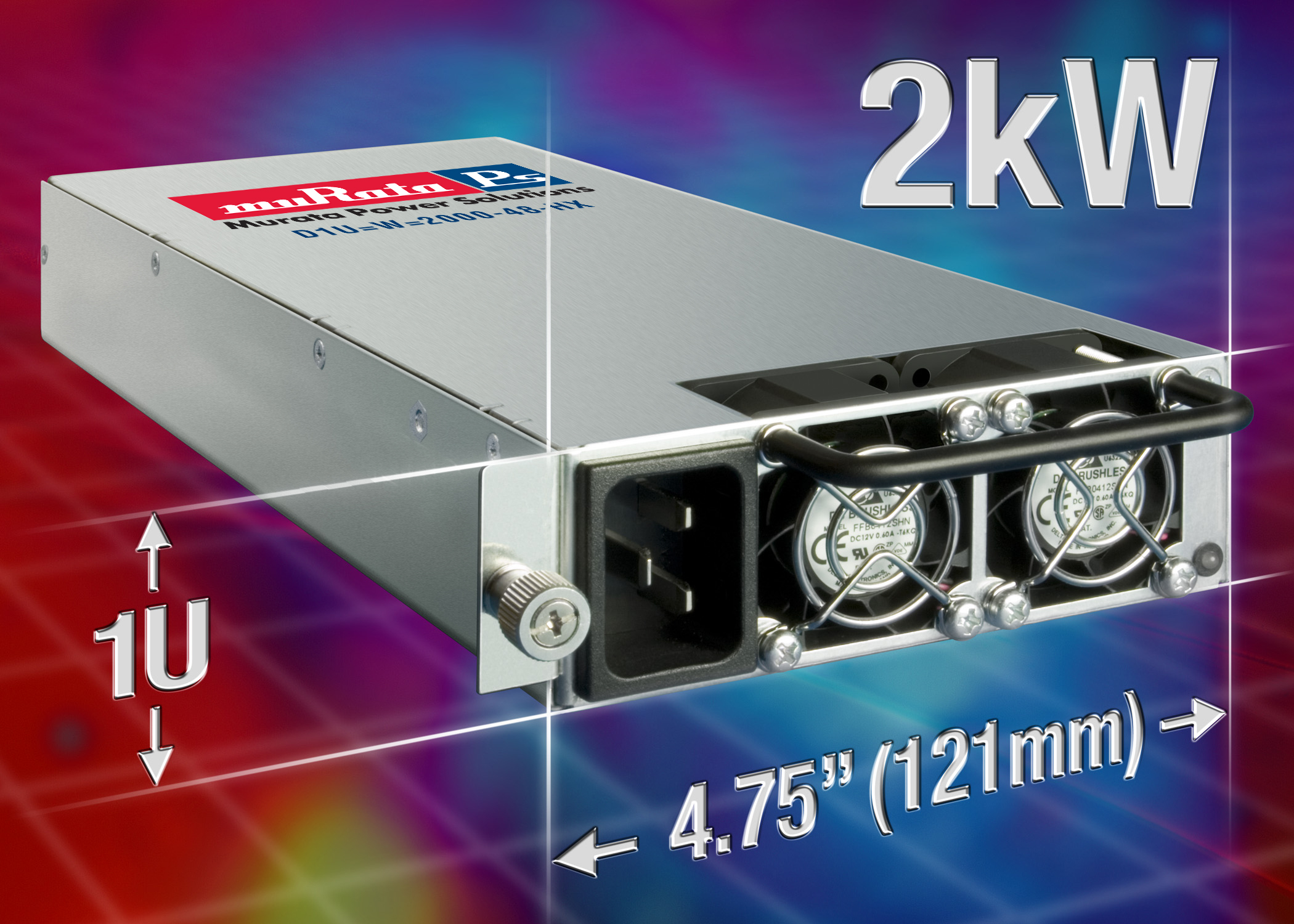

D1U-W Series
    D1U Series AC/DC Front-End Power Supply
  1. 1200W (110VAC), 1600W and 2000W(220VAC),
  2. 48V main output with 3.3V, 5V or 12V standby
  3. 1U enclosure with integrated fans
  4. High power density
  5. 90.6% efficiency
  6. Optional 1U 19in. Powershelf
AC/DC Front-End
Power Supplies

View high-resolution image

  View Press Release    1200W  1600W  2000W
  D1U-W-1200-48 Data Sheet  D1U-W-1600-48 Data Sheet  D1U-W-2000-48 Data Sheet



Date: November 16, 2006
Fixed Conversion Ratio Isolated Converter Allows Downstream Space and Cost Savings in IBAs
Fully compliant with Intel's VRM11.0 power specification and represents a proven power solution.
VRM11x Family
    VRM11.X family of DC/DC Converters
  1. Multiple power levels and form factor options
  2. Full compliance with Intel VRM11.0 power specification
  3. Maximum flexibility for designers
  4. RoHS compliance
  5. No load line models for traditional regulation requirements
VRM11x Family

View high-resolution image

  View Press Release  VR110B080  VR110B150  VR11CB080  VR11CB150
  VRK81B080CU Data Sheet  VRK81B080CS Data Sheet  VRK81B080CU Data Sheet  VRK81B100TH Data Sheet



Date: October 18, 2006
DC/DC Converter Family Meets Next-Generation Intel Processor Specifications
Isolated Eighth-Brick Bus Converter
Isolated Bus Converter
    EUS34-096 Isolated Bus Converter
  1. RoHS compliant
  2. 48Vin, Isolated, 5:1 fixed conversion ratio
  3. 240W output at 38 Vin, 55°C, 200 LFM
  4. 300W output at 48 Vin, 55°,C, 200 LFM
  5. Industry Standard 1/8 brick footprint
  6. Remote enable (primary side, positive or negative)
  7. Over-temperature, over current protections
  8. Direct parallel operation for higher power
EUS34-096
Isolated Bus Converter

View high-resolution image

View Press Release



Date: October 10, 2006

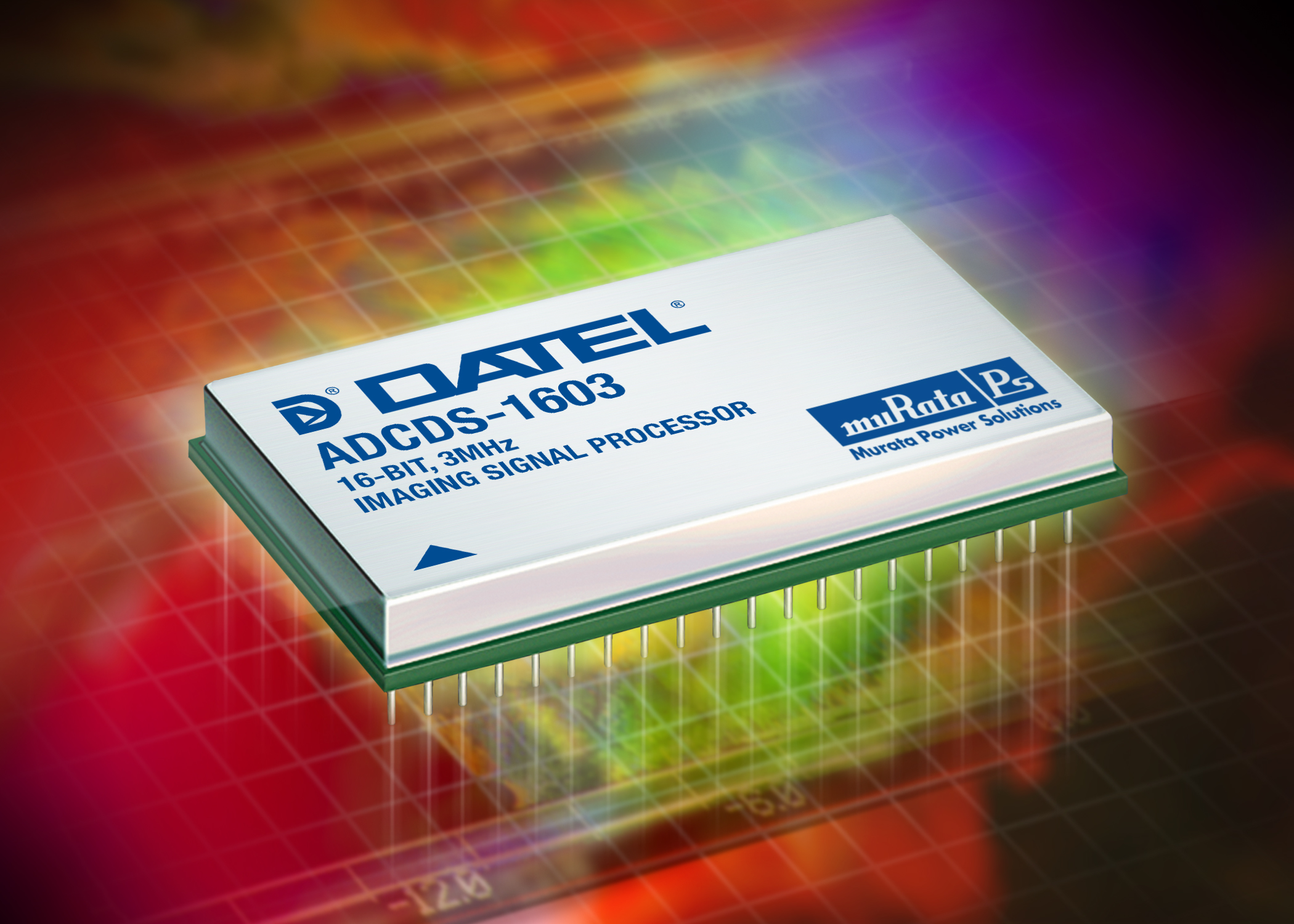

Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution
16-Bit, 3 megapixels/second imaging signal processor
Imaging Signal Processor
    ADCDS-1603 Imaging Signal Processor
  1. 16-bit resolution
  2. 3MPPS throughput rate (16-bits)
  3. Functionally complete
  4. Very low noise
  5. Excellent signal-to-noise ratio (85db)
  6. Edge triggered
  7. Small, 40-pin, TDIP package
  8. Low power, 500mW typical
  9. Low cost
  10. Programmable analog input bandwidth
ADCDS-1603
Imaging Signal Processor

View high-resolution image

View Press Release



Date: September 20, 2006

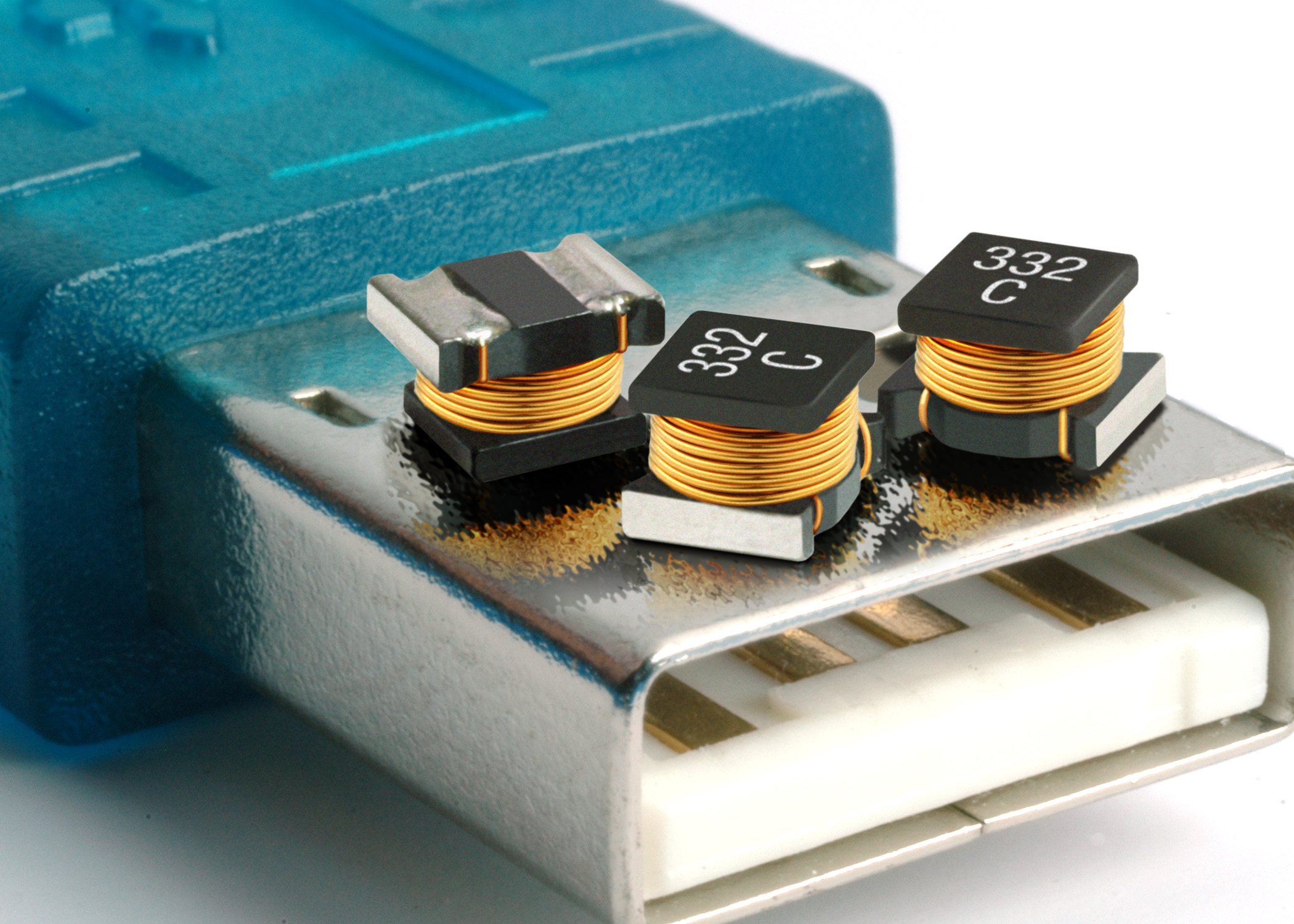

Ultra Low-Profile Power Inductors Provide a Solution in Tight Space
Designed for use in power applications with restricted PCB space and height, such as handheld devices, DC-DC converters and notebook computers.
Inductors
    8200 Series Inductors
  1. RoHS compliant
  2. Up to 2.0A IDC
  3. 1.0µH to 470µH
  4. Ultra low profile
  5. Low RDC
  6. Tape and reel packaging
  7. J-STD-020C reflow
8200 Series
Power Inductors

View high-resolution image

View Press Release



Date: August 31, 2006
Quarter-Brick Converter Enables Cost and Space Savings in Intermediate Bus Architecture Applications
Industry standard quarter brick footprint to support IBA for powering multiple downstream non-isolated point-of-load converters.
DC/DC Converters
    QUS40-096 Series DC/DC Converter
  1. RoHS compliant
  2. 48 VIN, Isolated, 5:1 fixed conversion ratio
  3. 300W output at 38 VIN, 55ºC, 200 LFM
  4. Industry standard ¼ brick footprint
  5. Remote enable (primary side, positive or negative)
  6. Over-temperature, over current protections
  7. Direct parallel operation for higher power
QUS40-096 Series
DC/DC Converters

View high-resolution image

View Press Release



Date: August 2, 2006
Quarter-Brick UCQ Series DC/DC Converters Provide Economical Solution with Outstanding Thermal Performance
DC/DC converters excel in applications such as telecom and datacoms equipment, base stations and embedded systems.
DC/DC Converters
    UCQ Series DC/DC Converter
  1. Standard quarter-brick package/pinout
  2. Low cost; Low profile, 0.4" (10.2mm)
  3. 24V or 48V nominal input
  4. Outputs: 3.3V/30-35A or 5V/20A
  5. Interleaved synchronous-rectifier topology
         Ultra high efficiency
         No output reverse conduction
  6. Outstanding thermal performance
  7. On/off control, trim & sense functions
  8. Fully isolated, 2250Vdc (BASIC)
  9. UL/EN/IEC60950 safety approvals
  10. Qual/HALT/EMI tested
UCQ Series
DC/DC Converters

View high-resolution image

View Press Release



Date: July 11, 2006

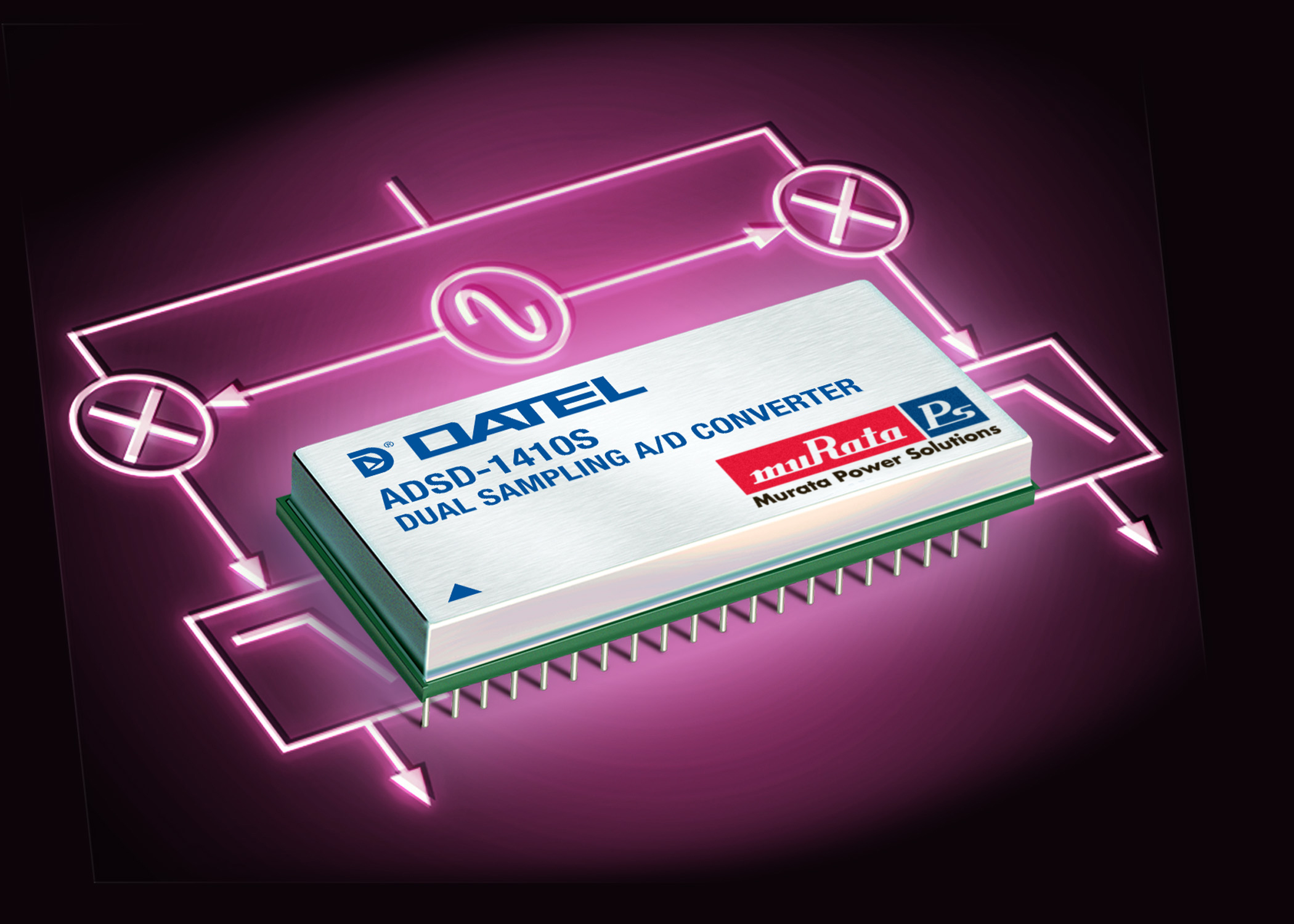

High-Speed Dual 14-Bit, 10MSPS Sampling A/D Converter
Functionally complete 10MSPS dual sampling a/d converter delivers class leading performance in high-speed data acquisition systems
A/D Converters
    ADSD-1410S Sampling A/D Converter
  1. 14-bit resolution; 10MSPS sampling rate
  2. Functionally complete; ±2.5V input range
  3. No missing codes over full temperature range
  4. Edge-triggered
  5. ±5V supplies, 1.6 Watts
  6. 76dB SNR, -83dB THD
  7. Ideal for both time and frequency domain applications
ADSD-1410S
Sampling A/D Converter

View high-resolution image

View Press Release



Date: June 27, 2006
5V and 12V Versions Broaden Offering of Low-Profile Isolated Output DC/DC Converters
Isolated 3W single and dual output DC/DC converters
DC/DC Converters
    NDTD / NDTS Series DC/DC Converters
  1. RoHS compliant
  2. Industry standard footprint
  3. Power density 0.90W/cm3
  4. 2:wide input range
  5. Short circuit protection
  6. Low profile 24 pin case; Footprint 4.73cm2
  7. Operating temperature range -40ºC to 85ºC
  8. 1kVDC isolation
  9. 5V, 12V, 24V & 48V Input
  10. 3.3V, 5V, 12V & 15V Output
  11. Internal SMD construction
  12. Fully encapsulated; No heatsink required
NDTD & NDTS Series
DC/DC Converters

View high-resolution image

View Press Release  NDTD
 NDTS



Date: June 26, 2006
High-Efficiency, Step-Down Switchers Deliver More Current than LM78XX Linears
95% Efficient, drop-in replacements supply 3.3/5/12V @ 400/500mA to +70ºC w/o air flow or heat sinks
DATEL's 78SR Linear Regulators
    New 78XXSR Series Switching Regulators
  1. 3-pin SIP packages fit LM7805 and LM7812 TO-220 footprints
  2. <0.1 sq. in. board space; No I/O caps required
  3. 260kHz switching design delivers:
       +7.5-36V inputs
       3.3V (1/2 Amp), 5V (1/2 Amp), 12V (400mA) outputs
       80-95% efficiencies
       Full-power operation to +70°C w/o heat sinks
       Full line (±0.2%) and load (±0.3%) regulation
       Low 3mA quiescent current
       10mVp-p output noise
  4. Short-circuit protection
  5. Ideal for powering precision instrumentation from noisy, unregulated 9/12/24/28Vdc supplies
  6. Prices start at $4.95 for huge quantities
78XXSR Series
Switching Regulators

View high-resolution image

View Press Release



Date: May 3, 2006

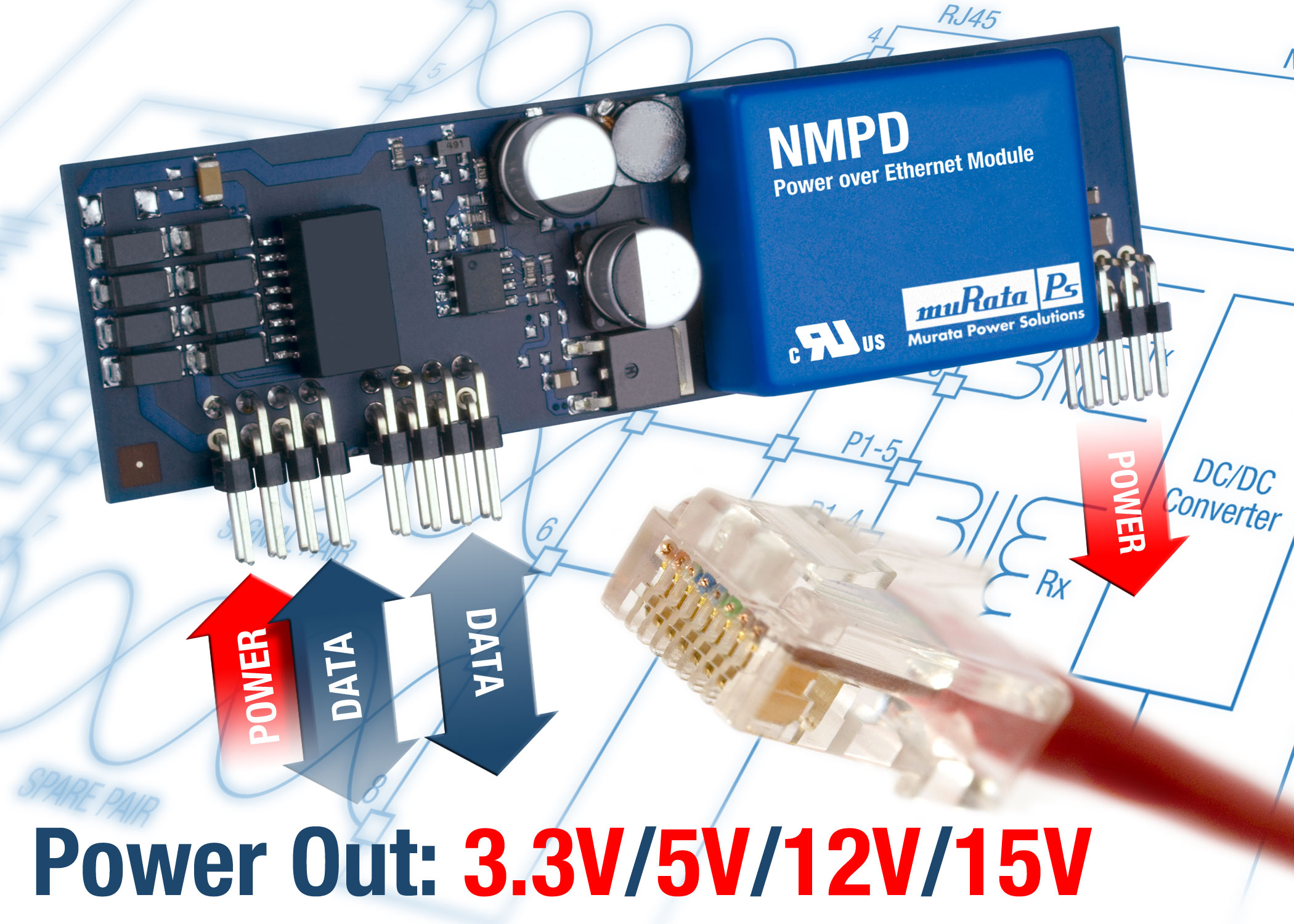

Industry's First Fully Integrated Power Over Ethernet PD Interface Modules Drive Down Component Count and Cost
Compact, IEEE802.3af-compliant modules with onboard isolated DC/DC converter eliminate need for localized power source in PoE applications
Power Over Ethernet PD Module
    NMPD01 Series
  1. Fully integrated PoE Powered Device (PD) interfaces
  2. Provide full IEEE802.3af-compliant data and power interface to Ethernet line
  3. Range of output voltage options
  4. Short circuit protection
  5. Isolated DC out
  6. 3.3V, 5V, 12V & 15V output options
  7. On board UL recognised DC/DC converter
  8. Thermal shutdown
  9. Output voltage present LED
  10. UL 94V-0 flammability
NMPD01 Series
Isolated Interface

View high-resolution image

View Press Release
